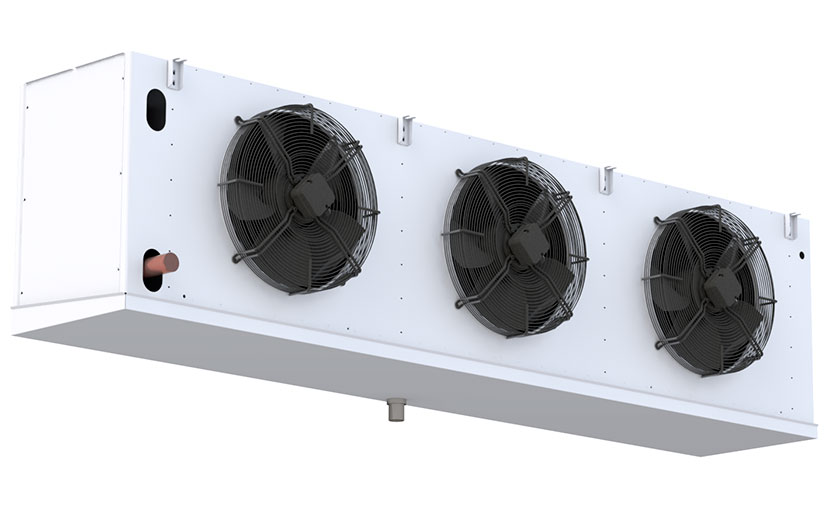

EA-DA Unit coolers for cold rooms

EA-DA model unit coolers produced by KARYER A.Ş. having the capacity range of 2,00 to 56,00 kW are able to satisfy small and medium cooling capacity needs for cold storage of vegetables and fruits. The unit coolers are designed with blowing fans appropriate for the storage of vegetables and fruits.

Coils inside the unit coolers are compact in addition to their highly efficient thermal performance.

Unit Coolers are produced using copper tubes, diameter of which can vary according to the usage of equipment. Products are manufactured with 7,00 mm fin spacing. Maximum operating pressure is 25 bar.

Casing of EA-DA Unit coolers for cold rooms is produced from galvanized steel sheets with electrostatic Ral 9016 powder paint to prevent corrosion; it has an attractive view in addition to its durability. Additionally, screwed side panels and hinged drain pan can be easily removed to facilitate installation and maintenance operations.

EA-DA unit coolers can be provided with monophase and threephase blowing fans of Ø350, Ø450, Ø500, Ø630mm diameters. Protection class of fans is IP44 and IP54. Fans are compatible with ERP 2015 regulations.

High-quality electrical heaters are placed in the casing on a drain pan according to working and design conditions.

Operation options of EA-DA model unit coolers are being developed in order to correspond to various projects and different needs.
